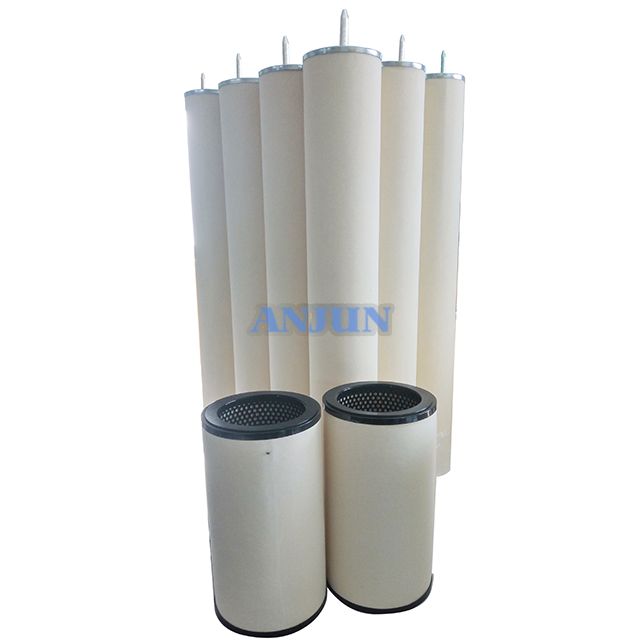

Feature
The absolute rated media stops particulate from reaching your critical equipment with no worries about tearing, swelling, shedding or unloading. Using a high surface area pleated media, the cartridge also boasts a high dirt loading capacity, yielding extended service life.
Rigid media structure makes cartridge resistant to abrasive contaminants and liquid slugs plus resists compression under heavy loading
Extended filtration capacity due to open structure.
Environmentally friendly synthetic cartridge. No glues or binders.
Helical flow path forces the gas to take a longer path through the cartridge thus increasing the contaminants chances of impacting fibers.
Many designs come with integral end seals made from the same material as
the cartridge tube ensuring chemical compatibility and eliminating the need for metal caps and gasket seals which can separate from the cartridge and end up in the bottom of the housing
| MODEL NUMBER | MODEL NUMBER | OUTSIDE DIAMETER | INSIDE DIAMETER | MOUNTING STYLE |
|||
| in | mm | in | mm | in | mm | ||

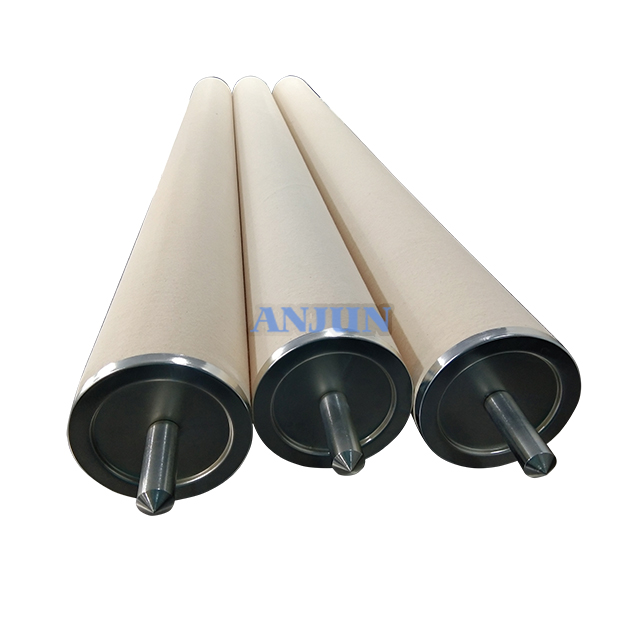

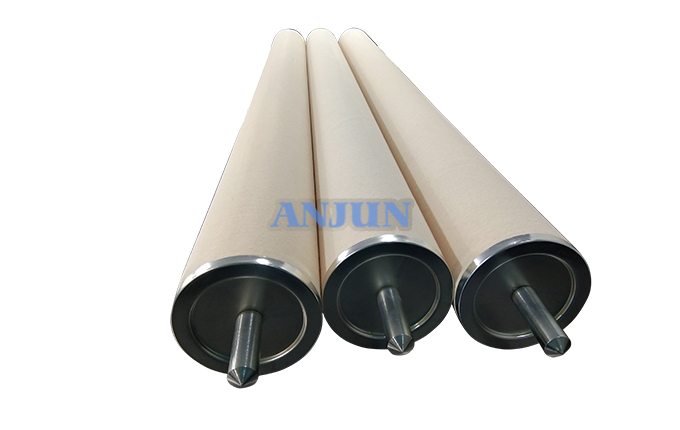

| AJ11-5 | 11-1/4 | 290 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ14-5 | 14-1/2 | 370 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ14-5SB | 15 | 380 | 6 | 152 | 3-1/2 | 89 | Screw Base |
| AJ22-5 | 22-1/4 | 560 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ22-5SB | 23 | 580 | 6 | 152 | 3-1/2 | 89 | Screw Base |
| AJ28-5 | 28-3/4 | 730 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ28-5SB | 29 | 740 | 6 | 152 | 3-1/2 | 89 | Screw Base |
| AJ33-5 | 33-1/4 | 840 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ33-5SB | 34 | 860 | 6 | 152 | 3-1/2 | 89 | Screw Base |
| AJ38-5 | 38 | 960 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ38-5SB | 39 | 990 | 6 | 152 | 3-1/2 | 89 | Screw Base |
| AJ43-8 | 43-1/4 | 1100 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ43-5SB | 45 | 1140 | 6 | 152 | 3-1/2 | 89 | Screw Base |
| AJ56-5 | 56-1/4 | 1430 | 6 | 152 | 3-1/2 | 89 | Rod |
| AJ56-5SB | 57 | 1450 | 6 | 152 | 3-1/2 | 89 | Screw Base |
