Accuracy Metal Powder Sieving Machine High Screening Ultrasonic Rotary Vibrating Screen

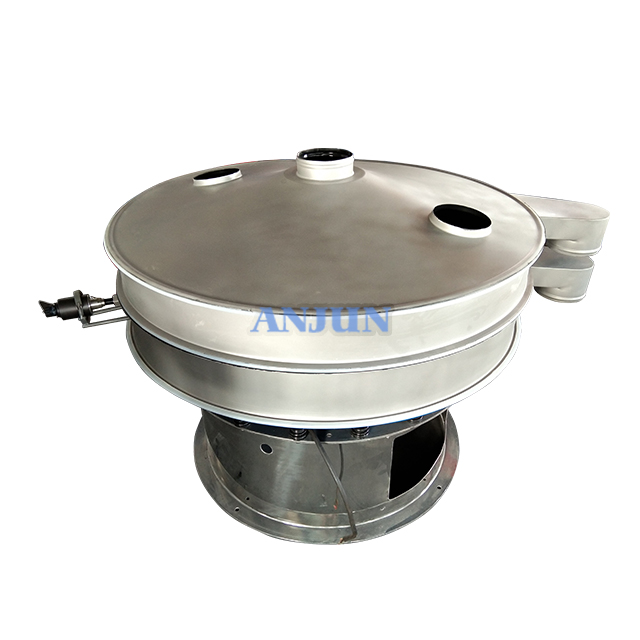

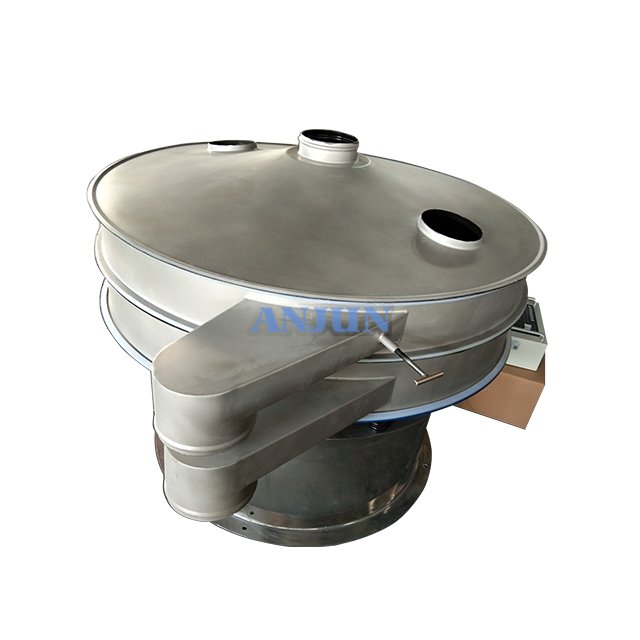

Diameter 800 High-efficiency Integrated Stainless Steel rotary vibrating screen is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to quickly change the screen. It has a fully enclosed structure and is suitable for screening and filtration of granules, powder, mucus and other materials.

Tumbler screen imitates the principle of manual sieving and combines sieving (circular motion) with hand sieve (parabolic motion), which is suitable for dry and wet materials, with high sieving accuracy and large output. This article will detail the tumbler screen for you.

The plastic circular rotary vibrating screen is made of PPC and is made of corrosion-resistant material. It is suitable for screening powdery and granular materials and liquid filtration in various industries. The sieving can be as fine as 500 mesh or 0.028mm, and the filtration can be as fine as 5 microns. It can be equipped with one to five layers of screens and can sort or filter materials of two to six grades at the same time. By adjusting the phase angle of the upper and lower weights, the movement trajectory of the material on the screen surface can be changed, the screening accuracy of the material can be easily controlled, and the material can be finely screened, probability screened, etc.

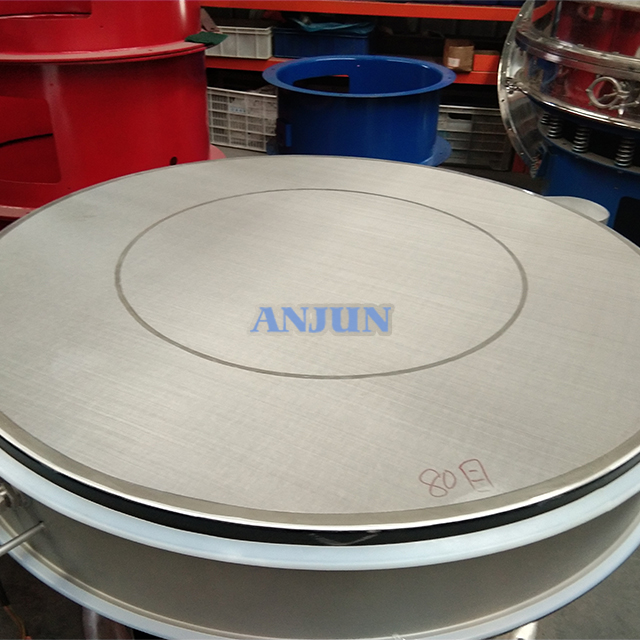

Automatic Industrial vibration sieve metal powder sifter circular vibrating screen rotary separator machine used for grading, screening, and filtering raw materials or finished products. The device operates on the principle of vibration, using vibration motors to cause the material to move back and forth on the screen, achieving the purpose of screening and filtering. The round vibrating screen is mainly composed of a screening box, a screen mesh, a vibration motor, and shock-absorbing springs. The screening box is usually made of stainless steel and has good corrosion resistance and ease of cleaning. The screen mesh can be made of different materials and have different aperture sizes based on specific requirements and powder characteristics.

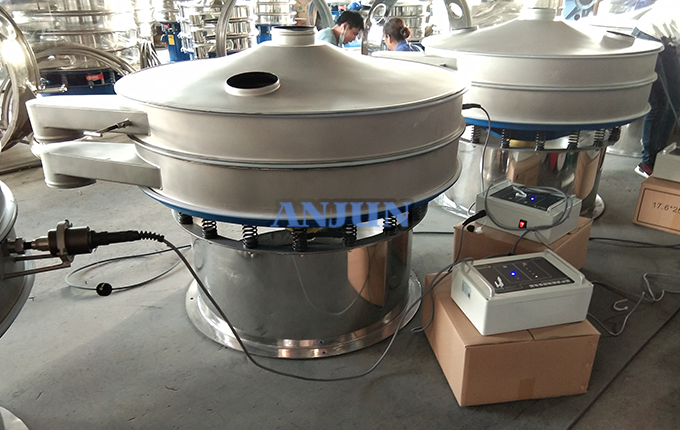

Ultrasonic Sieving Screen offered for Micro Powder.The ultrasonic rotary vibrating screen is based on the original rotary vibrating screen, with an ultrasonic vibrator attached to the screen. The high-frequency mechanical waves generated by the instrument cause the ultrafine powder to undergo huge ultrasonic acceleration, thereby inhibiting adhesion, friction, and flatness，wedging and other network blocking factors to improve screening efficiency and network cleaning efficiency.
