Ceramic Slurry Rotary Vibrating Screen Fine Powder Circular Vibratory Sifter Sieve Machine

The linear screening machine is driven by dual vibration motors. When the two vibration motors rotate synchronously and in opposite directions, the exciting forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axis, and overlap in the direction perpendicular to the motor axis. A resultant force, so the motion trajectory of the screen machine is a straight line. The two motor shafts have an inclination angle relative to the screen surface. Under the reasonable action of the excitation force and the self-gravity of the material, the material entering the equipment is thrown up on the screen surface and jumps forward in a straight line. Several types of materials are produced through the multi-layer screen. The materials above and below the sieve of the specified specifications are discharged from their respective discharge ports to achieve the purpose of screening and grading.

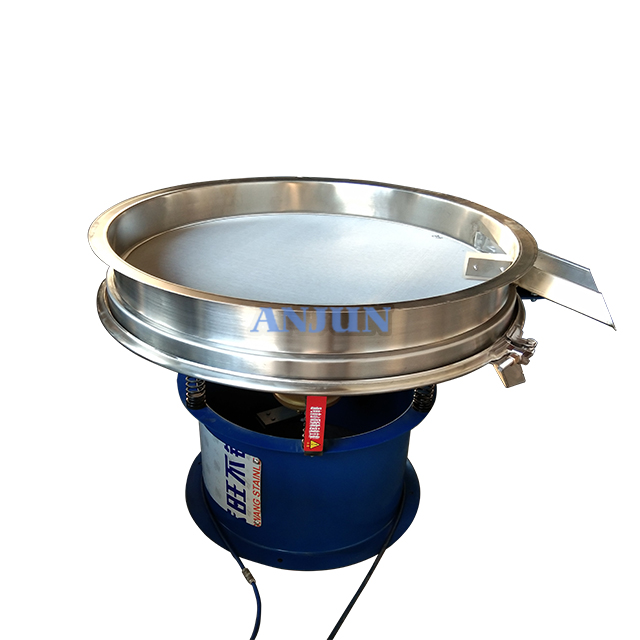

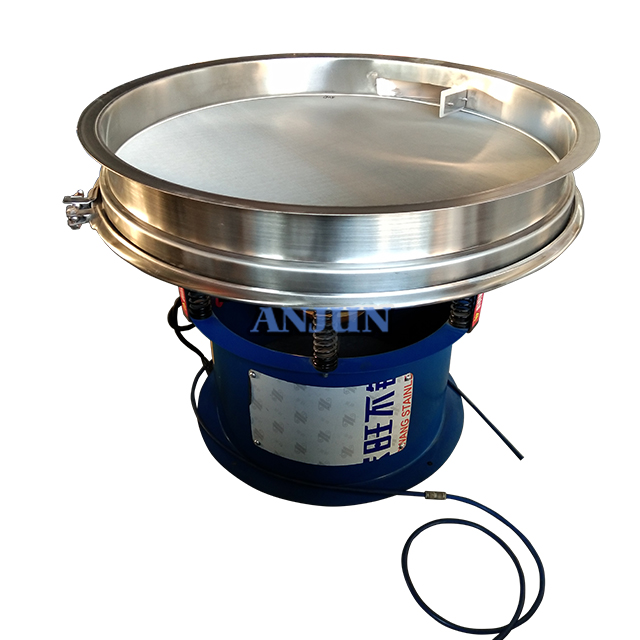

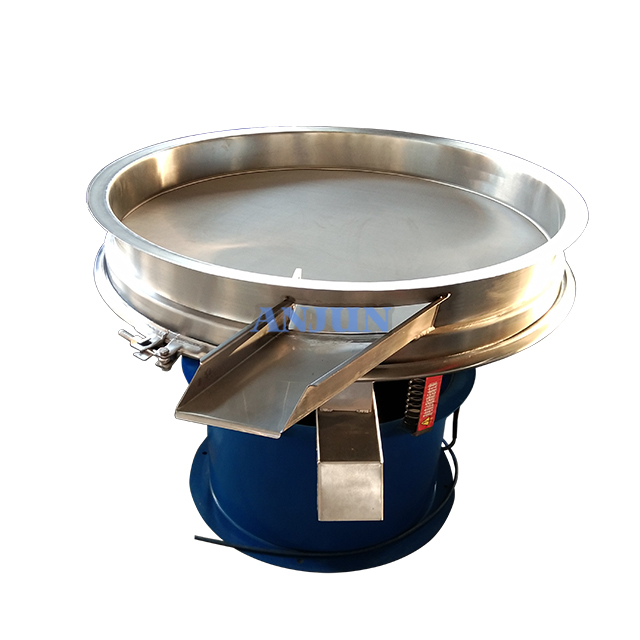

High Frequency Vibrating Screen Sieve For Ceramic Slurry is a highperformance, low energyconsumption surry fiterscreen designed for thickslurry, viscous materialdifficult to sift. The seriesvibrating screen frame bodyis raised, can effectivelyprevent the slurry splashing,with a fuly closed structurepowder does not fly, liquiddoes not leak, mesh does notblock, automatic discharge,no materia stored in themachine, no dead Angle of thegrid structure, the use of thescreen area increased,

Ultrasonic Sieving Screen offered for Micro Powder.The ultrasonic rotary vibrating screen is based on the original rotary vibrating screen, with an ultrasonic vibrator attached to the screen. The high-frequency mechanical waves generated by the instrument cause the ultrafine powder to undergo huge ultrasonic acceleration, thereby inhibiting adhesion, friction, and flatness，wedging and other network blocking factors to improve screening efficiency and network cleaning efficiency.

Automatic Industrial vibration sieve metal powder sifter circular vibrating screen rotary separator machine used for grading, screening, and filtering raw materials or finished products. The device operates on the principle of vibration, using vibration motors to cause the material to move back and forth on the screen, achieving the purpose of screening and filtering. The round vibrating screen is mainly composed of a screening box, a screen mesh, a vibration motor, and shock-absorbing springs. The screening box is usually made of stainless steel and has good corrosion resistance and ease of cleaning. The screen mesh can be made of different materials and have different aperture sizes based on specific requirements and powder characteristics.

Straight row vibrating screen, widely known as "safety officer", It is connected to the production system and the automatic sorting speed is much faster than other types of sieving machines. It adopts high frequency vibration motor as excitation source. After the material enters the screen machine, it is subjected to three-dimensional rotary motion on the screen surface by the vibration source force. Powder and agglomeration are fully dispersed and rapidly separated. Qualified materials enter the lower chamber, and foreign bodies and large particles are discharged to the slag discharge port.
